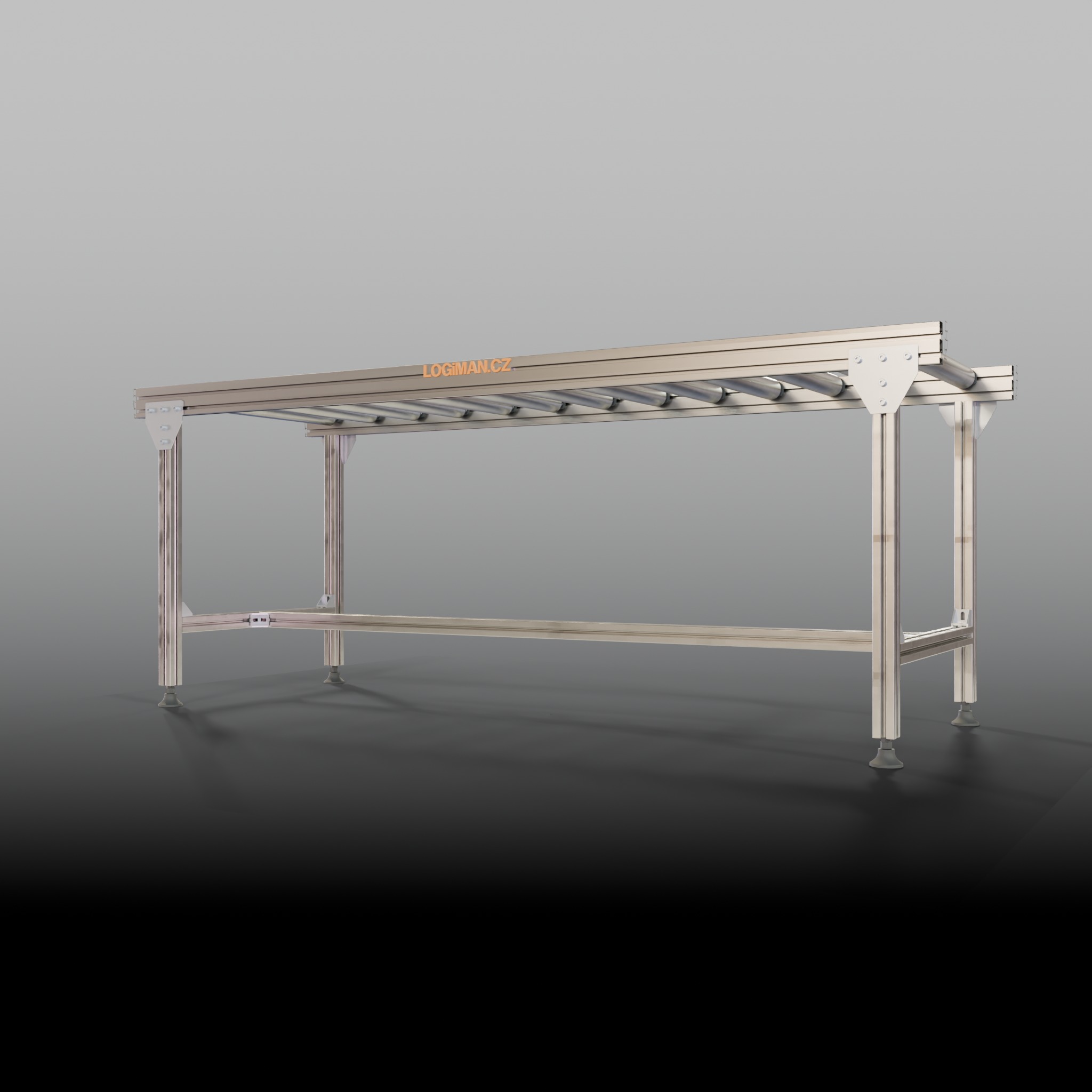

Roller conveyor – customisable

Unpowered roller conveyor with free-running rollers. Set its dimensions in the 3D generator (configurator) to suit the place where the conveyor will go. What can be set: roller type (smooth aluminium Ø50, knurled aluminium Ø50 or steel Ø51), width given by the roller length (290, 440, 590 or 790 mm, steel rollers also 990 mm), conveyor length from 1 to 6 m, roller pitch from 75 to 300 mm, height of the top of the rollers from 570 to 870 mm, number of legs and the lower frame. Construction: the legs and the lower frame are made of 40×40 aluminium profile, the legs are telescopic. The lower frame can be chosen with cross bars and a long bar, with cross bars only, or left out. The longest free span between legs is 3 m, so the generator fits a longer conveyor with at least six legs.
