Modular aluminium profiles
Modular aluminium profiles with a clamping slot are a universal modular system from which machine frames, workbenches, protective covers, assembly lines, shelving units, trolleys and made-to-measure furniture are built without welding. You join the structure with screws and connecting accessories, and at any time you can extend it, modify it or take it apart and reuse the parts.
Podkategorie
Produkty
Videa
What is an aluminium modular profile
It is a long extrusion of aluminium alloy with a regular cross-section, with slots formed into it. Nuts, screws and other parts slide into the slot, so anything can be attached anywhere along the length of the profile. The profile is cut to the length you need, corner connectors or angle brackets are fitted to the ends, and the frame is done.
Why aluminium and why a modular system
Aluminium is light, so a structure is easy to carry and can be assembled by two people. It does not corrode, withstands damp and clean environments, and the surface can be anodised, which increases durability and gives the profile a clean, uniform finish.
Operations change: a new machine, a different product range, another worker. A fixed welded structure is difficult to rebuild, whereas a modular frame can be taken apart, extended and reassembled. This is the main advantage of the system.
How the slot works

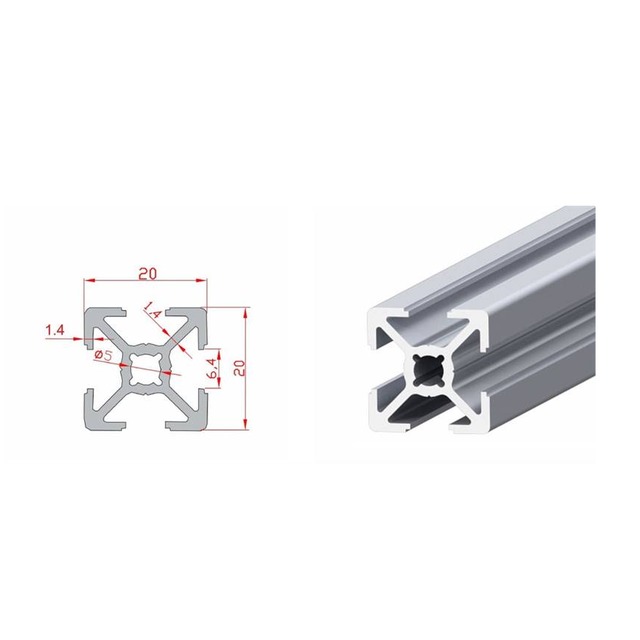

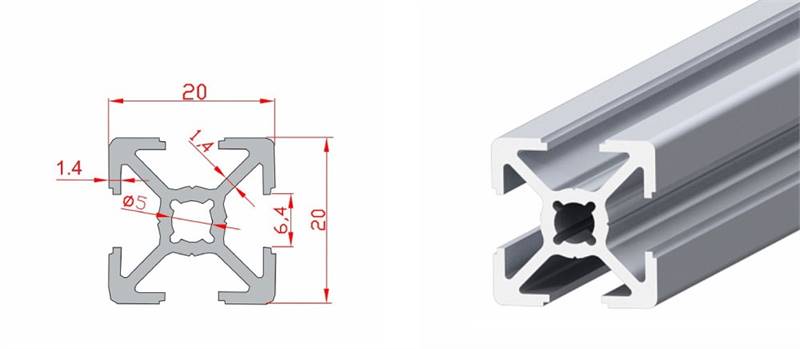

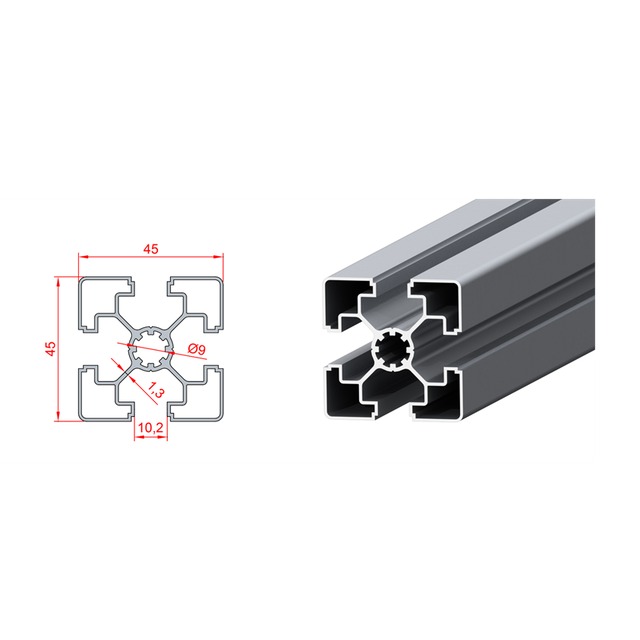

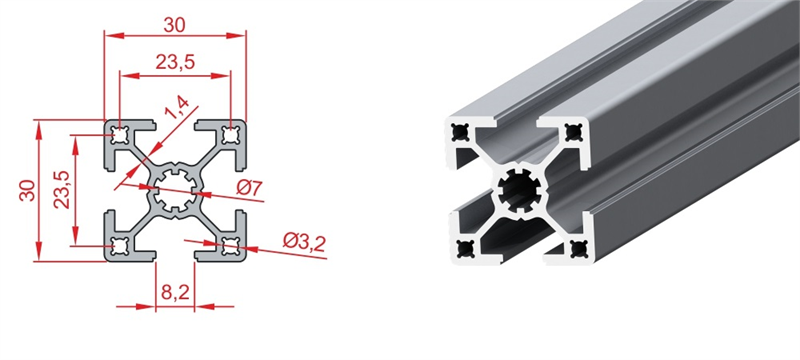

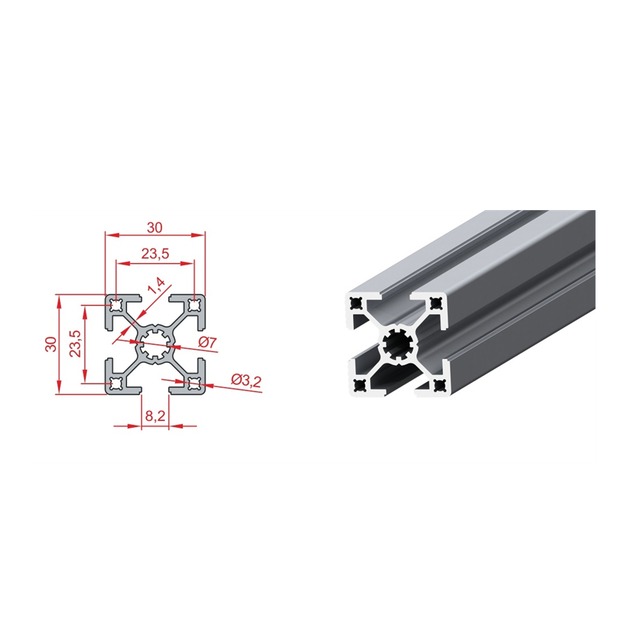

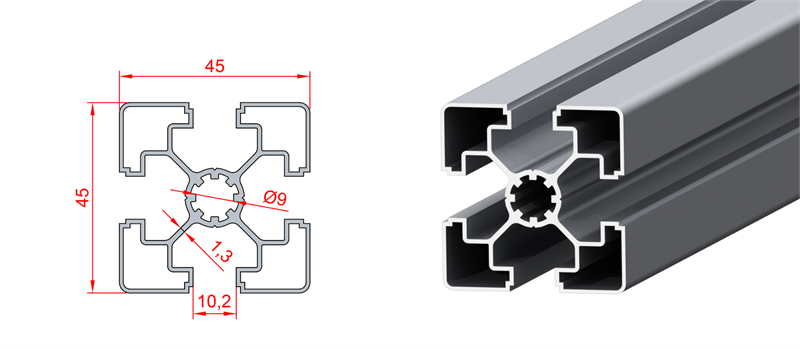

The slot is formed along the whole length of the profile. Its shape and width determine which nuts and screws fit into it. The width of the slot matters most: 6 mm for the lightest profiles, 8 mm for the middle and most versatile series, and 10 mm for the strongest profiles.
What profiles are used for
- Machine and equipment frames. Load-bearing frames, bases, covers and instrument stands.
- Workbenches, packing tables and assembly tables. A frame and superstructures to which shelves, panels, light fixtures and holders are attached.
- Safety fencing and machine guards.
- Assembly lines and conveyors. Structures for roller tracks, product guides and stands.
- Shelving units, trolleys and stands.
- Exhibition and retail systems.
- Custom furniture and interior elements.
- Hobby, workshops and schools. A construction system you can experiment with.
What you will find in our range

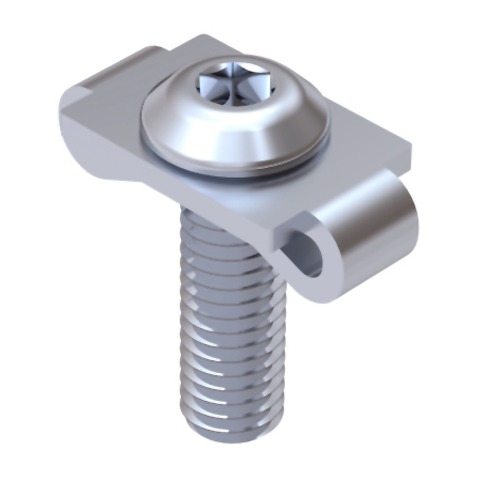

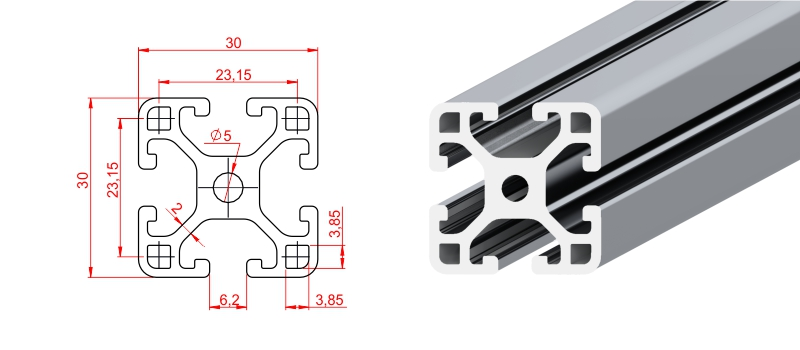

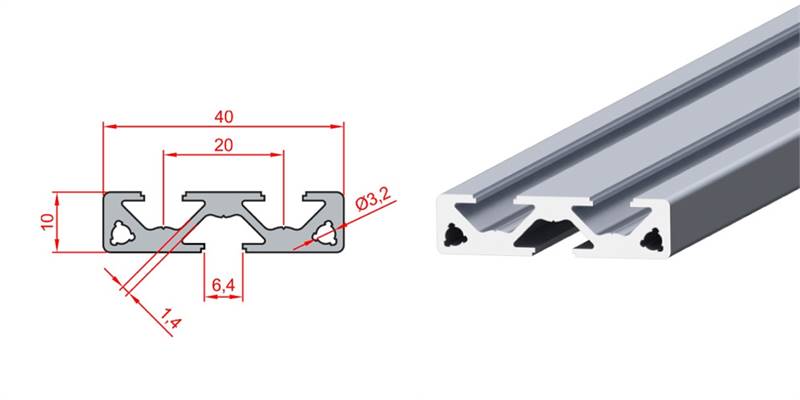

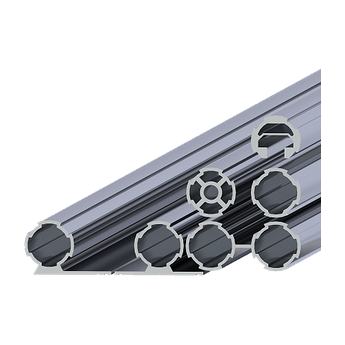

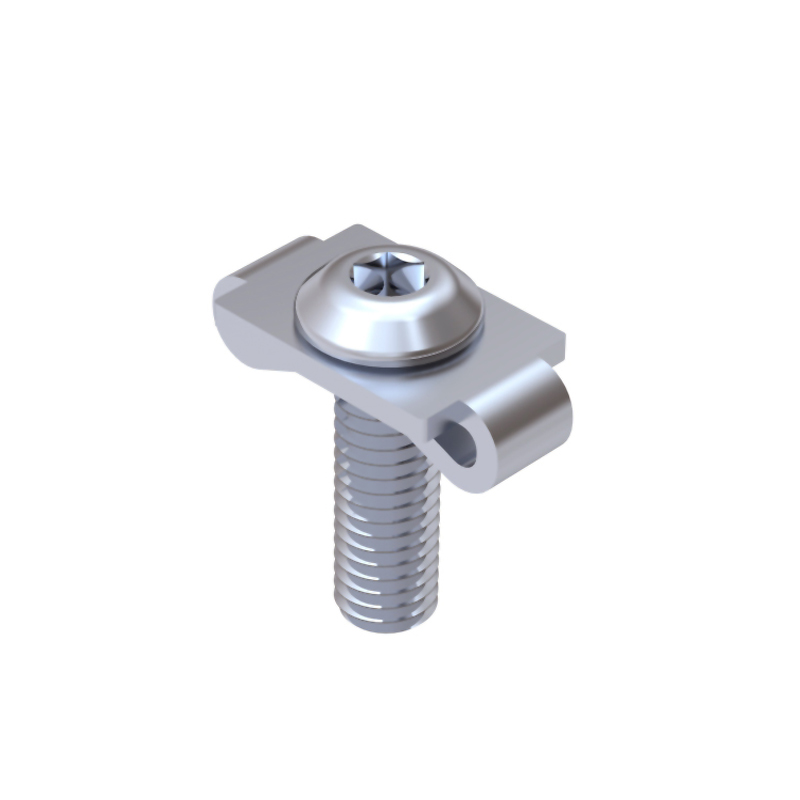

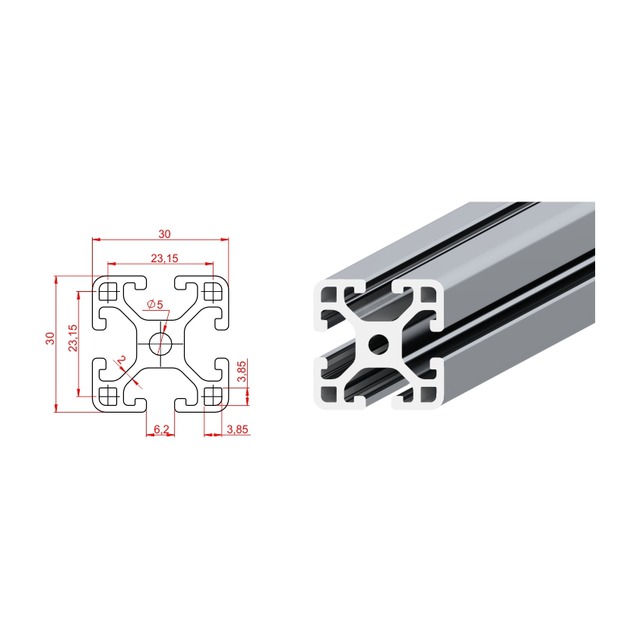

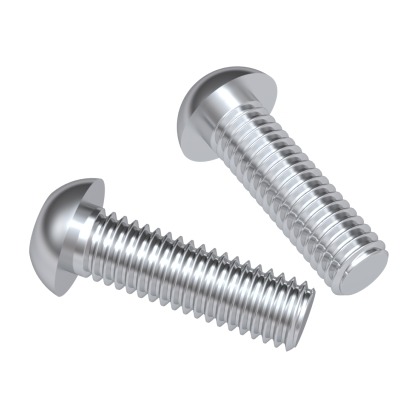

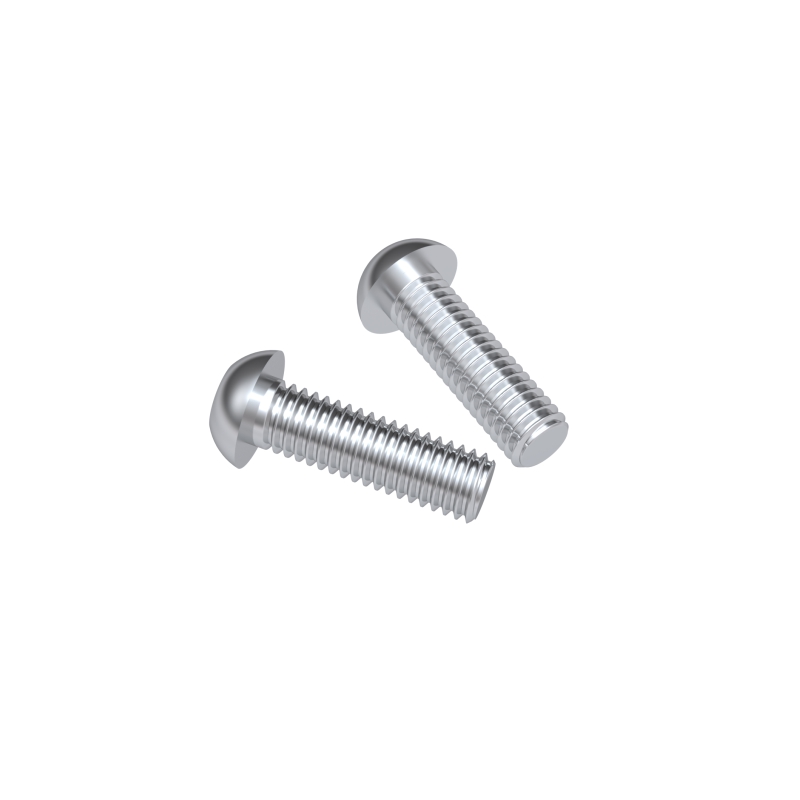

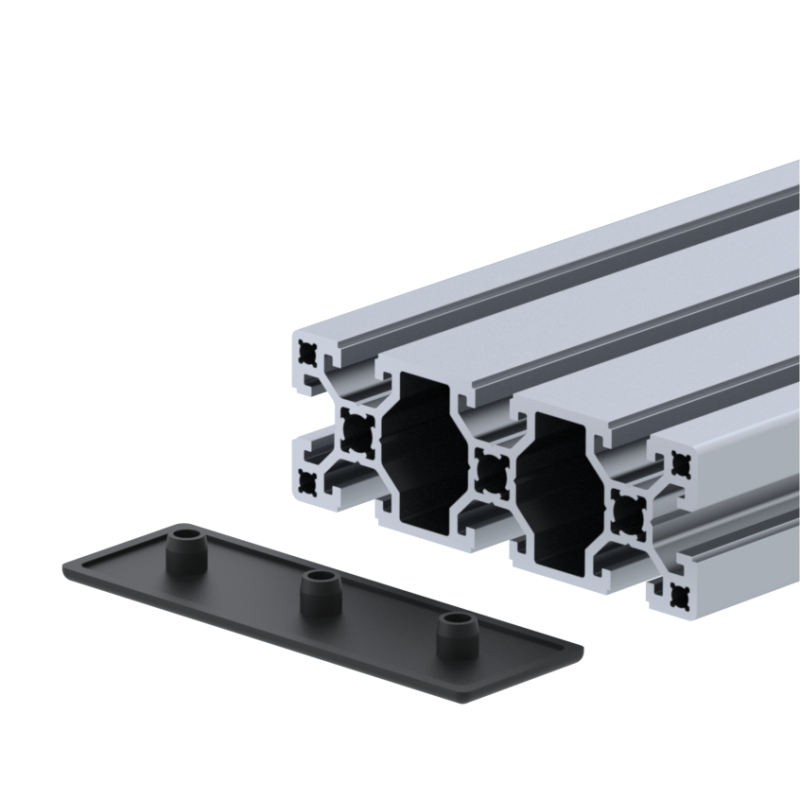

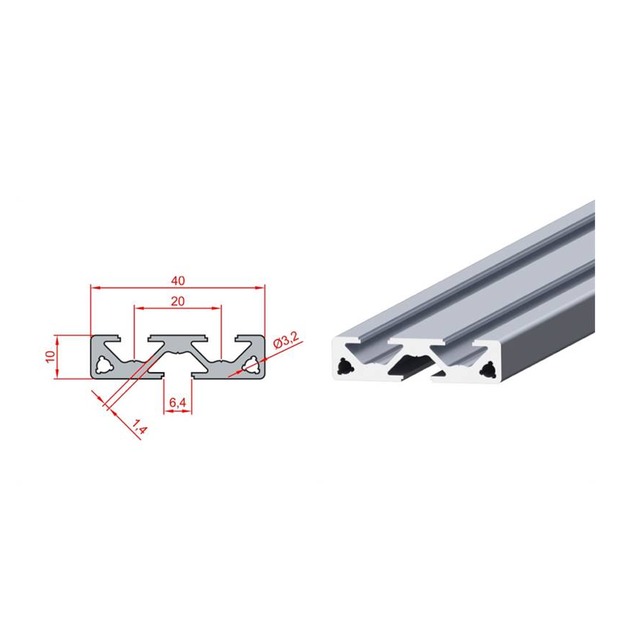

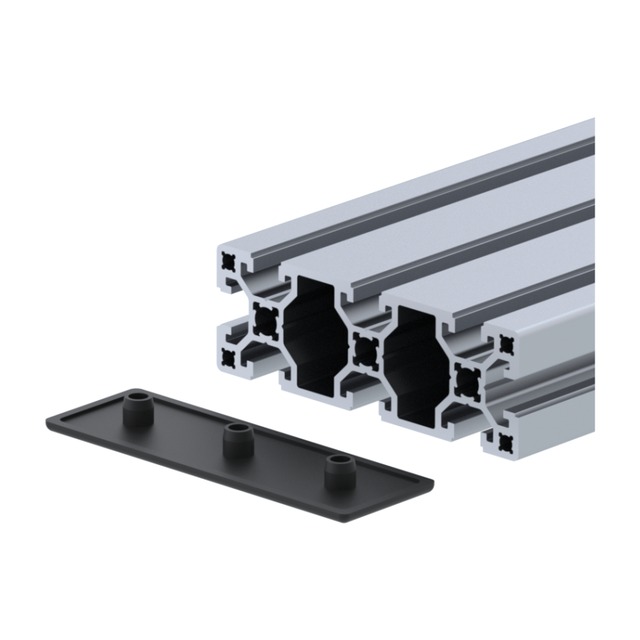

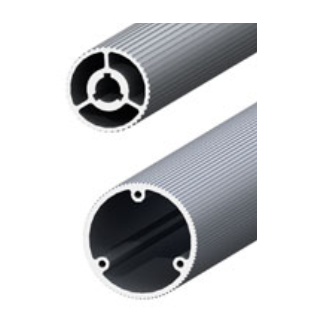

Our range includes profiles with a 6, 8 and 10 mm slot (according to the size and load capacity of the structure), as well as round and panel profiles, profiles of the Sigma series, the Dynamic tube system and a complete range of fasteners and accessories (angle brackets, T-nuts, screws, end caps, hinges, castors and more). Logiman will also design structures to your specification and, if required, carry out professional assembly.
How to choose a profile
Choosing a profile is a compromise between strength, stiffness, weight and price. There is no single best profile; it always depends on what is being built from it. The size of the profile (the module) determines its cross-section, and the slot determines which accessories fit it. The two are related: a larger profile usually has a wider slot.
Tell us what the structure will be used for and what it will carry, and we will advise which profile and which connections to choose. We can also design the whole structure and show you the 3D model before production begins.
Frequently asked questions
Can a profile structure be modified or extended later?
Yes, that is the main advantage of a modular system: no welding, just screws and connecting accessories, so you can extend, modify or dismantle the structure at any time.
