Ergonomic workbenches

The primary aim of ergonomic design of workbenches in assembly and production plants is to minimise the risk of musculoskeletal disorders (MSDs), which are among the most common occupational diseases in Europe and in the Czech Republic. Prolonged periods in unnatural static postures, bending of the torso and head, raised or outstretched arms, highly repetitive movements and a combination of physical strain with monotony lead to pain in the back, neck and shoulders, tendon inflammation, carpal tunnel syndrome, circulatory disorders and chronic spinal conditions. A properly designed workstation significantly reduces these risks, improves blood circulation, reduces fatigue and contributes to higher long-term productivity.

Key ergonomic requirements for a workbench

1. Height adjustment

The work surface must allow the position to be changed dynamically during a shift (sitting – semi-sitting – standing). The optimal adjustment range is 650–1,250 mm. The recommended work surface heights are 630–760 mm for seated work and 900–1,200 mm for standing work. In this way neutral elbow angles (90–110°) are maintained, the shoulders stay relaxed and the spine in its natural position, which reduces pressure on the intervertebral discs and muscular imbalance.

2. Worktop dimensions and layout

The ideal worktop depth is 600–800 mm (most often 700 mm), so that the forearms can rest without reaching forward. The worktop width is chosen according to the nature of the operation (1,200–3,000 mm). Sufficient space for the lower limbs (at least 600 mm) and rounded edges (R ≥ 3–5 mm) are essential. Material and tools must be placed in the zone of comfortable reach (400–600 mm from the body), which eliminates unnecessary movements and forward bending of the trunk.

3. Load capacity and stability

A workbench must offer high load capacity (150–600 kg depending on the type of operation) and absolute stability. Any instability causes compensatory muscle tension and increases the risk of errors and chronic overload.

4. Risk assessment

An ergonomic analysis of a workstation includes a comprehensive assessment of working postures, repetitiveness of movements, local muscle load and the overall layout of the workplace. The priority of the necessary adjustments is set on the basis of the results.

5. Other ergonomic features

  • Ergonomic seats with lumbar support and adjustable height.
  • Even lighting of the work surface (500–1,000 lx) free of shadows and glare.
  • Option of a slight worktop tilt (0–15°).
  • Integrated handling aids (roller or ball units) that replace manual handling of loads.
  • Optimised material flow and organisational systems placed in the comfort zone.
  • Matt worktop surfaces.

Specific requirements by sector

In the automotive industry and on light-industry assembly lines, single-purpose ergonomic workstations with high load capacity and precise adaptation to a specific operation are preferred. In distribution centres, quick height adjustment is the key for packing and dispatch activities. In hygienic environments, ergonomics is combined with requirements for washable materials.

Impact on health and productivity

Long-term exposure to a non-ergonomic workstation significantly increases the risk of chronic musculoskeletal disorders, back, neck and shoulder pain, tendon inflammation and higher absence. A properly designed workstation, by contrast, brings:

  • a marked reduction in risky postures and repetitive strain,
  • better blood supply to the muscles and lower overall fatigue,
  • improved mental concentration and quality of work,
  • a decline in occupational diseases and lower healthcare costs,
  • higher productivity (up to 20–30% in optimised operations).

How to choose the table height

The height of the work surface is the most important dimension of a table, and also the one that is most often chosen wrongly. The right height depends on whether you work seated, standing or alternating between the two, and on how fine or how heavy the work is.

Seated, standing and alternating work

For seated work the work surface is set lower, so that the elbows stay at a neutral angle and the shoulders relaxed. For standing work it is set higher, so that people do not have to stoop. For work that alternates between sitting and standing, i.e. with sit-stand tables, the adjustment range is chosen to cover both positions for workers of different heights. Changing position is what benefits health in the long run: standing still for long periods is just as stressful as sitting still for long periods.

Fine and heavy work

Fine work, for example assembling small components or inspection, requires a slightly higher table so that the hands are close to the eyes and no stooping occurs. Heavy work, for example packing heavy boxes or clamping, on the other hand requires a lower table so that you can push with your body weight. One height therefore never suits everyone, which is why it pays to make the table adjustable or to build it made to measure for the specific activity.

Elbows and angles

The basic rule is that when working, the forearms should be roughly horizontal and the elbows at a comfortable, open angle. If you have to reach or raise your shoulders, the table is set wrongly. It is good to have somewhere to rest your forearms, and not to reach across a worktop that is too deep.

What the regulations say

Hygiene requirements for working positions, their duration and breaks are laid down by the government regulation on health protection at work. These regulations, and the standards mentioned in the summary, do not prescribe one universal height but ranges and principles, which is why the table is adjustable.

How to proceed in practice

  1. Find out who works at the table and how the heights of the people in the team differ.
  2. Decide whether the work will be done standing, seated or alternating.
  3. Choose a fixed height if one person works at the table, and an adjustable one if different people or positions alternate.
  4. Try the real work on a prototype before the table is made in larger numbers.

Who is responsible for what: occupational health and safety

The employer is responsible for a safe workplace that does not endanger health. This includes a risk assessment, among other things of the risks associated with working posture, manual handling of loads and long-term screen work. Hygiene regulations govern, among other things, how long a person may remain in a given position, when a break or a change of activity must follow, and what load is still acceptable to lift.

A made-to-measure table is one of the tools that can reduce risks: the right height, reach, a height-adjustable solution, aids for moving heavy items and good lighting. It does not solve everything, however: the worker also needs a suitable alternation of positions, breaks and training. Always check specific requirements and limits in the current regulations or with your safety technician.

Office desk or industrial workbench?

For office desks there is the European standard EN 527, with requirements for dimensions, safety and strength. Industrial and workshop tables have different demands: higher loads, rougher handling, clamping of workpieces, resistance to chemicals and cleaning, and often the need for reconfiguration. That is why standards from the office environment are used for them only as guidance, and the table is designed according to the specific work.

Summary

An ergonomically optimised workbench is a basic prerequisite of sustainable production. It meets the requirements of ČSN EN ISO 6385 and respects anthropometric data according to ISO 14738. It allows natural changes of working position, eliminates static overload and protects workers' health while increasing efficiency and satisfaction.

Custom ergonomic tables

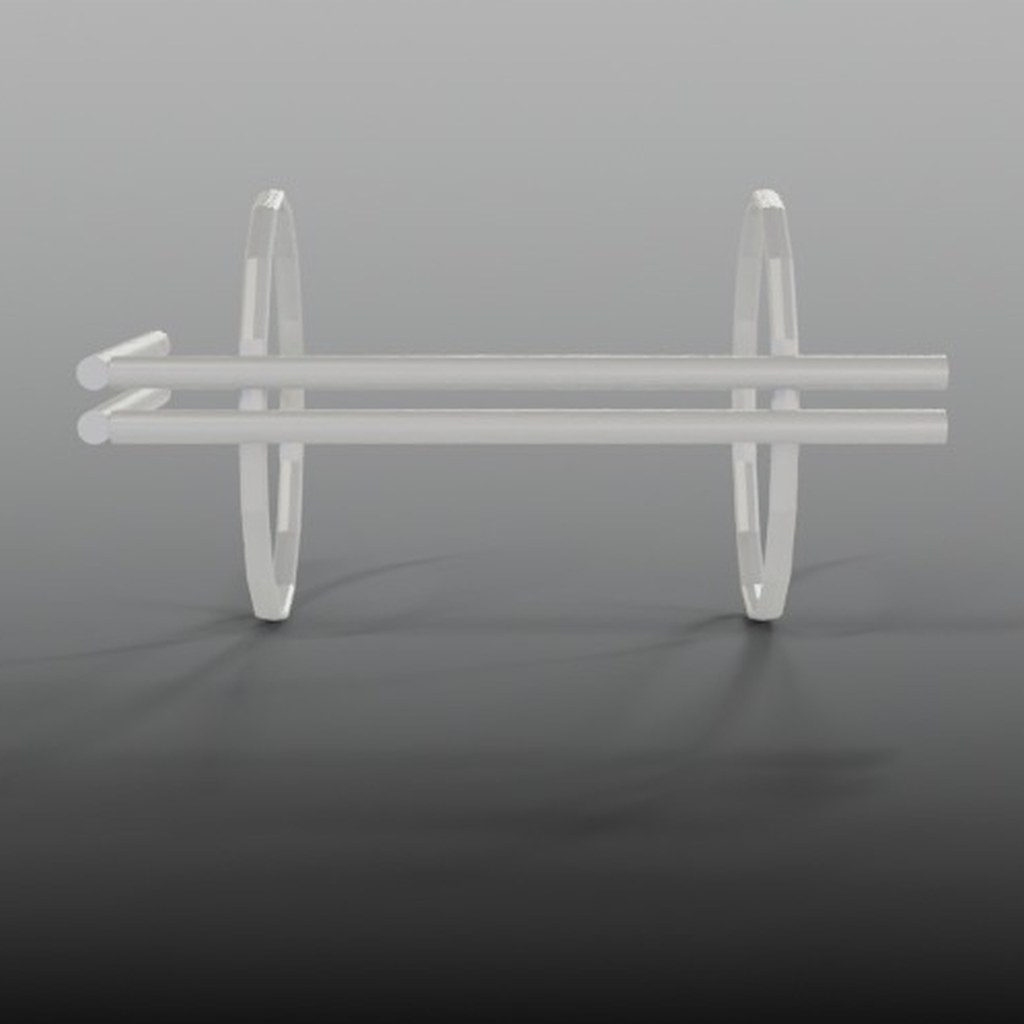

We make ergonomic workstations to order from an aluminium kit with clamping slots, so the height, shelves and accessories can be adapted to the specific work. Height adjustment is provided by electrically controlled lifting columns: the stroke is completely smooth and quiet (electric tables ESSE). Ergonomic packing tables are intended for packing and dispatch, and inspection tables and workstations for other operations. You will find parts for tables in the Components, semi-finished parts and table parts category.

We can also provide a fully custom table solution as required: we adapt the worktop dimensions, height, shelves and equipment to how and with what you work at the table.

Frequently asked questions

What work surface height is ergonomic?
Recommended work surface heights are 630–760 mm for seated work and 900–1,200 mm for standing work. The optimal adjustment range is 650–1,250 mm, so that you can alternate between sitting, perching and standing during a shift.

Why should a workbench be height-adjustable?
Because the work surface should allow the working position to change dynamically during a shift (sitting – perching – standing). This keeps elbow angles neutral (90–110°), shoulders relaxed and the spine in a natural position.

How deep and wide should the worktop be?
The ideal depth is 600–800 mm, most often 700 mm, so that forearms can rest without stretching. The width is chosen according to the operation (1,200–3,000 mm), there should be at least 600 mm of leg space under the table and the edges should be rounded (R ≥ 3–5 mm).

What lighting is suitable at a workbench?
Even lighting of the work surface at 500–1,000 lx without shadows and glare, together with a matt worktop surface.

Can you make an ergonomic table to measure?
Yes, we can do fully custom table solutions as needed. The height is adjusted by electrically controlled lifting columns (ESSE tables); you can find packing tables in the Packing tables and made-to-measure workstations category.

How do I choose the table height?
According to whether work is done seated, standing or alternately, and according to how fine the work is. Choose a fixed height if one person works at the table; if several people of different heights work at the table or positions alternate, a height-adjustable table is better.
